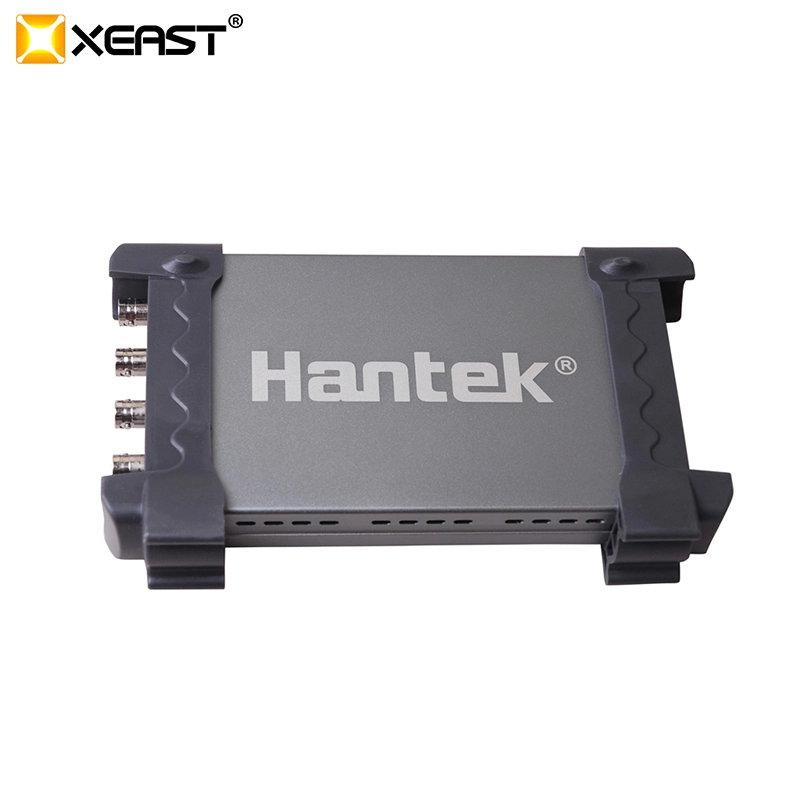

Hantek 6074BC sereis 4 Channel 1GSa/s 70Mhz Bandwidth Hantek PC Based USB Digital Storage Oscilloscop 1

Hantek 6074BC sereis 4 Channel 1GSa/s 70Mhz Bandwidth Hantek PC Based USB Digital Storage Oscilloscop 2

Hantek 6074BC sereis 4 Channel 1GSa/s 70Mhz Bandwidth Hantek PC Based USB Digital Storage Oscilloscop 3

Hantek 6074BC sereis 4 Channel 1GSa/s 70Mhz Bandwidth Hantek PC Based USB Digital Storage Oscilloscop 4

Hantek 6074BC sereis 4 Channel 1GSa/s 70Mhz Bandwidth Hantek PC Based USB Digital Storage Oscilloscop 5

Hantek 6074BC sereis 4 Channel 1GSa/s 70Mhz Bandwidth Hantek PC Based USB Digital Storage Oscilloscop 6

Hantek 6074BC sereis 4 Channel 1GSa/s 70Mhz Bandwidth Hantek PC Based USB Digital Storage Oscilloscop 7

Hantek 6074BC sereis 4 Channel 1GSa/s 70Mhz Bandwidth Hantek PC Based USB Digital Storage Oscilloscop

Size:

27.9*15.6*3.0cm

Weight:

840g

Color:

White

Certificate:

CE,FCC,RoHS

Logo:

XEAST or Customized

Inquiry

Write a Review

Product Introduction

The performance of this model could even better than the performance of benchtop oscilloscope. It has 4 analog channels, 1GSa/s real-time sampling rate, 2mV-10V/DIV input sensitivity, and 250MHz bandwidth.

It is powered by USB2.0 Interface, plug and play device with small size which is easy for carrying. High cost performance, pass/fail test, resourceful trigger function, dynamic cursor tracking, waveform record and replay function.

Product Features

Pro35-8

Fit for the portable computers, table PC, and repairing/fixing of production line. Suitable for business trip use.Software support: Windows10, Windows 8, Windows 7.

Pro35-9

Pass/fail test, resourceful trigger function, dynamic cursor tracking, waveform record and replay function. The operation interface is similar to banchtop oscilloscope, easy to operate with high cost performance.

Pro35-10

The waveform data could be output to EXCEL,BMP,JPG as time and voltage category. More than 20 kinds of automatic measurement function, PASS/FAIL Check function, fit for engineering application.

Pro35-12

Provide secondary development library DLL; Provide Labview\VB\VC\QT developing examples. One computer could connect with multiple oscilloscopes, expand the channel number easily.

Product Display

Pro35-7

Pro35-6

Pro35-5

Pro35-3

Key Specifications

Model	Hantek6074BC/Hantek6104BC/Hantek6204BC/Hantek6254BC
Bandwidth	70MHz/100MHz/200MHz/250MHz
Channel	4 CH
Real-time Sampling Rate	1GSa/s
Memory Depth	64K
Time Base Precision	±50ppm
Time Base Range	2ns/div-1000s/div (1-2-4 sequences)
Input Impedance	1MΩ 25pF
Input Sensitivity	2mV/div～10V/div
Vertical Resolution	8Bit
Vertical Displacement Range	2mV ~ 10V/div @ x1 probe; 20mV ~ 100V/div @ x10 probe； 200mV ~ 1000V/div @ x100 probe; 2V ~ 10000V/div @ x1000 probe
DC Gain Accuracy	±3%
Bandwidth Limit	20MHz
Trigger Mode	Edge, Pulse, Video, Alternative
Trigger Source	CH1, CH2, CH3,CH4
Waveform Signal Process	+,-,x,÷,FFT, Invert
Cursors Measurement	Cross, Trace, Horizontal, Vertical
Auto Measurement	Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle
Volume	175mm * 105mm * 25mm
Weight	0.9KG
Accessory	2 passive probes, 2 gator clip lines
